The LED high bay series is ideal for locations such as retail stores, storage areas and general open areas. Suited for medium to high mount heights of 20’ or lower.
- Heavy duty die-cast aluminum ballast housing and prismatic refractor.
- Die-cast aluminum ballast housing with a white polyester powder paint finish.
- Easy to change out with other reflectors replace or remove and bottom lens.
- Steel hanger comes as standard.
- Comes with steel hook or die cast hook for easy mounting (WHK).
- Pendant splice box threaded for 3/4” conduit or hook mount.
REFLECTOR & BOTTOM LENS:
- Anodized aluminum reflector.
- Available with conical bottom lens, drop bottom lens and heat and impact resistant tempered clear glass flat lens in options.
- AL16: 16” Diameter reflector
- AL22: 22” Diameter reflector

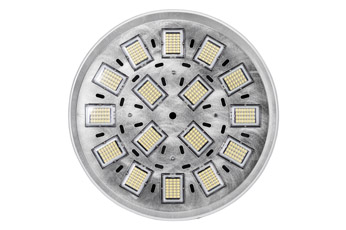

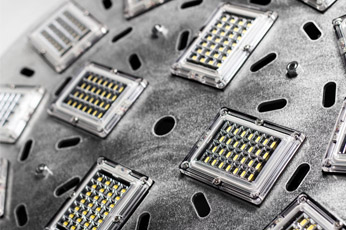

- High efficient LED modules, components are products of Seoul Semiconductor LEDs. High safety with complete waterproof and thermal emission of LED Module. IP67 rated
- 5000K color temperature standard.
- Color Rendering Index: 77+ Ra.
- Luminous Efficacy: 80 lm/w.
- Input Voltage: 24Vdc
- 60°/120° Beam Angle.
- 50,000 hours.
- High power factor electronic driver, operates from 90 ~ 305 Vac input range, 50 / 60 Hz.
- Features include over voltage protection, surge, short circuit protection and over load protection.
- All-Round Protection: OVP, SCP, OTP.
- Class 2 and SELV
- Power Factor: typical > 0.92
- Optional 1-10V dimmable driver. (Dimmer supplied by others)
- Minimum starting temperature -4°F(20°C) ~ 122°F(50°C).
- UL8750, UL1012, UL1310 Class 2, CSA-C22.2 No. 107.1, CSA C22.2 NO. 223-M91 Class 2
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.
- IP20 rated.
- Tested to IESNA LM80 standards.
- Suitable for damp locations.
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- ARRA Compliant.
