SPECIAL ORDER ONLY with MOQ 300
10-12 weeks lead time



APPLICATION:

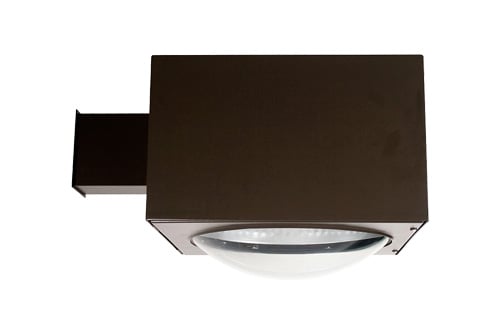

Architectural area lighting, 22” square heavy duty die-cast aluminum housing, arm mount and vertical lamp unit.  Segmented aluminum design reflector for the best light efficiency.  Use on walkways, parking areas and street lighting.

FEATURES:
- Heavy duty die-cast aluminum housing and door frame.
- Housing is dark bronze polyester powder paint finish standard. Also available in other finish.
- Fully sealed with silicone foam gasket to prevent any leakage from the outside.
- Anodized spun aluminum reflector provides the optimum lighting solution.
- Heat and impact resistant tempered flat glass lens (400W max.) or convex glass lens. (1000W max.)

MOUNTING:
- Provided aluminum arm for square pole mounting.

LAMP:
- Vertically oriented, HID mogul base, porcelain socket with screw shell and center contact.
- MH1000W lamp: BT37/E39
- Lamp included.

ELECTRICAL:
- MH ballasts are standard high power factor ballast with ambient operating temperature of -20°F (-30°C) to 108°F (90°C); 180°C insulation system.
- HPS ballasts are standard high power factor ballast with ambient operating temperature of -40°F (-40°C); 180°C insulation system.

LISTING:
- UL/CUL listed.
- Suitable for wet location.
- ARRA compliant.
