APPLICATION:

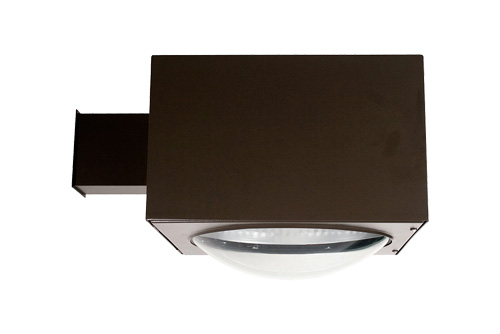

Architectural area lighting, 22” square heavy duty die-cast aluminum housing, arm mount, vertical lamp unit, segmented aluminum designed reflector for the best light efficiency. For walkways, street lighting and parking areas.

FEATURES:
- Heavy duty die-cast aluminum housing and door frame, dark bronze polyester powder coat finish standard.
- Also available in other finish.
- Fully sealed with silicone foam gasket to prevent any leakage from the outside.
- Anodized spun aluminum reflector provides the optimum lighting solution.
- Heat and impact resistant tempered flat glass lens or convex glass lens.

MOUNTING:
- Provided aluminum arm for square pole mounting. Wall mount bracket availably.

LAMP:
- Induction lamps will have circular lamp and long lamp life rated 100,000 hours, nominal 82Lm/W, 80+ CRI.
- Lamp included.

ELECTRICAL:
- High power factor, instant start, high frequency energy, from the electronic ballast (generator); High-frequency power to the discharge vessel (lamp) to initiate and maintain a gas discharge for a rated 100,000 hours of life.
- Low start-up temperature, closed fixture for ambient temperatures range is from -25°C to 50°C; Higher ambient temperatures may reduce lamp life.
- Input voltage: 120-277V
- Input frequency: 50/60Hz

LISTING:
- UL/CUL listed.
- Suitable for wet location.
- Limited 10 years warranty on induction system (including material & workmanship.
- ARRA compliant.
