APPLICATION:

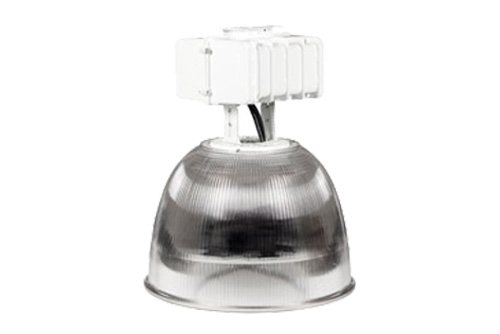

The BL series prismatic reflector is available in 16” and 22” diameters.  Ideal for location of retail stores, warehouses, gymnasiums, factories, foundries, machine shops, grocery stores and malls.

FEATURES:
- Heavy duty die-cast aluminum ballast housing and prismatic refractor.
- Die-cast aluminum ballast housing with a white polyester powder paint finish.
- Easy to change out with other reflectors replace or remove and bottom lens.

MOUNTING:
- Steel hanger comes as standard.
- Comes with steel hook or die cast hook for easy mounting (WHK).
- Pendant splice box threaded for 3/4” conduit or hook mount.

REFLECTOR & BOTTOM LENS:
- High impact, UV-stabilized prismatic polycarbonate reflector and lens.
- Available with conical bottom lens, drop bottom lens and heat and impact resistant tempered clear glass flat lens in options.
- BL16: 16” dia. prismatic reflector.
- BL22: 22” dia. prismatic reflector.

LAMP:
- HPS Lamps have mogul base (E39) heavy duty porcelain socket with screw shell and center contact.
- MH Lamps have protected mogul base (E39) heavy duty porcelain socket with screw shell and center contact.
- Lamp included.

ELECTRICAL:
- MH ballasts are standard high power factor ballast with ambient operating temperature of -20°F (-30°C) to 108°F (90°C), 180°C insulation system.
- HPS ballasts are standard high power factor ballast with ambient operating temperature of -40°F (-40°C), 180°C insulation system.

LISTING:
- UL/CUL listed standard.
- IP20 rated.
- Suitable for damp locations.
- ARRA compliant. (optional)
