APPLICATION:

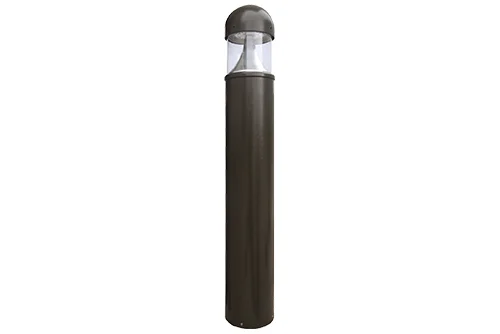

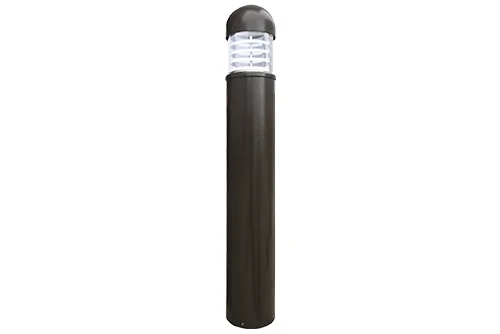

LED bollard light provide high light efficiency. Energy saving replacement of Metal Halide and High pressure sodium lamps with a driver inside. It is designed to work in building perimeter areas and public spaces completing a wide variety of architectural styles.

FEATURES:
- Die-cast extruded aluminium housing.
- Superior performance extends to the detailed finish of the louvers.
- Type A&C : Anodized aluminum louver with white finish.                       Type B&D : Anodized aluminum cone reflector.
- Fully sealed to prevent any leakage from the outside.
- Grating or sand blast reflector inside fixture can prevent light glare effectively.
- Without any hazardous material in fixture.
- 22lbs (10kg)

MOUNTING:
- Offers a impact resistant mounting and leveling design ensuring life long performance.
- Anchor bolts and base plate are provided as standard.

LED:
- CREE LED.
- Color Temperature: 3000/4000/5000 (K)
- CRI: >70
- 150° distribution.
- LED Module: High efficiency up to 92 lm/W.
- Service life: Greater than 50,000 hours(L70) minimizing maintenance frequency.
- Proprietary binning for uniform color.

ELECTRICAL:
- Ambient Operating Temperature: -4°F (-20°C) ~ 113°F (45°C).
- Power Factor: >0.95
- Input Voltage: 120V-277V, 50/60Hz
- 347-480V is operated with 347-480V LED driver, not with 120-277V step-down transformer.

OPTIC:
- Aluminum louver installed as standard for superior performance.
- U.V stabilized polycarbonate cover.

LISTING:
- cETLus listed.
- LM79, LM80 available.
- 5 years warranty.
- Suitable for wet location.
