APPLICATION:

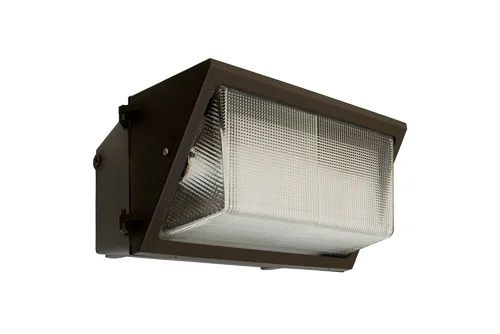

The borosilicate glass lens wall pack is ideal for both commercial and residential applications with wall mounting.  Use on factories, warehouses, self storage, commercial buildings, entrances, walkways and loading docks.

FEATURES:
- Die-cast aluminum housing and hinged door frame with prismatic borosilicate glass lens refractor.
- Housing and door frame had silicone gasket to seal lens for wet location and with two stainless steel screws.
- Housing with 1/2” feed-through hubs provided.
- Dark bronze finish is standard; white or black finish is also available.

MOUNTING:
- Wall mounting only.
- Easily installs on recessed junction boxes or on direct mounts to the wall with feed thru 1/2” conduit access.

REFLECTOR & COVER:
- Heat and impact resistant tempered clear prismatic glass lens.

LED:
- High efficient LED modules, components are products of Samsung LEDs. (G2LED : Cree LED)
- High safety with complete waterproof and thermal emission of LED Module. IP67 rated
- 5000K color temperature standard.
- Color Rendering Index: 82+ Ra.
- Luminous Efficacy: 125 LM/W. (G2LED: 100.2)
- Input Voltage: 24Vdc
- 60°/120° Beam Angle. (G2LED available in 120° only)
- 50,000 hours.

ELECTRICAL:
- High power factor electronic driver, operate from a 90 ~ 305 Vac input range, 50 / 60 Hz.
- Features include over voltage protection, surge, short circuit protection and over load protection.
- Waterproof (IP66) and damp location.
- All-Round Protection: OVP, SCP, OLP.
- Class 2 and SELV. (except 120W)
- Power Factor: typical > 0.90
- Optional 1-10V dimmable driver. (Dimmer supplied by others)
- Minimum starting temperature: -22°F (-30°C) ~ 122°F (50°C).
- UL8750, UL1012, UL1310 Class 2, CSA-C22.2 No. 107.1, CSA C22.2 NO. 223-M91 Class 2

LISTING:
- UL/ CUL listed.
- RoHS.
- IP67 rated.
- Tested to IESNA LM80 standards.
- Suitable for wet locations.
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- ARRA compliant.
