APPLICATION:

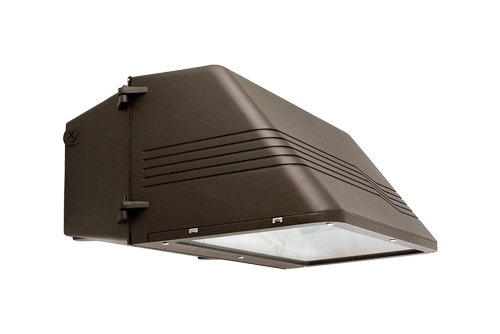

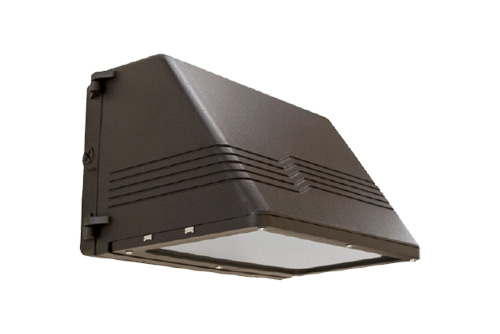

The full cut-off wall pack is ideal for both commercial applications with wall mounting.  Use on factories, warehouses, self storage, commercial buildings, entrances, walkways and loading docks.

FEATURES:
- Full cut-off dark sky compliant fixtures.
- Die-cast aluminum housing and hinged door frame. Door frame holds lens and seals housing gasket.
- Housing with 1/2” feed-through hubs provided.
- Housing has silicone gasket to seal to lens for wet location.
- Dark bronze finish is standard; white or black finish is also available.

MOUNTING:
- Wall mounting only.
- Easily installed on recessed junction boxes or on direct mounts to the wall with feed thru 1/2” conduit access.

REFLECTOR & COVER:
- Heat and impact resistant tempered frost textured glass lens.

LED:
- High efficient LED modules, components are products of Samsung LEDs. (G2LED : Cree LED)
- High safety with complete waterproof and thermal emission of LED Module. IP67 rated
- 5000K color temperature standard.
- Color Rendering Index: 82+ Ra.
- Luminous Efficacy: 125 LM/W. (G2LED: 100.2)
- Input Voltage: 24Vdc
- 60°/120° Beam Angle. (G2LED available in 120° only)
- 50,000 hours.

ELECTRICAL:
- High power factor electronic driver, operate from a 90 ~ 305 Vac input range, 50 / 60 Hz.
- Features include over voltage protection, surge, short circuit protection and over load protection.
- Waterproof (IP66) and damp location.
- All-Round Protection: OVP, SCP, OLP.
- Class 2 and SELV. (except 120W)
- Power Factor: typical > 0.90
- Optional 1-10V dimmable driver. (Dimmer supplied by others)
- Minimum starting temperature: -22°F (-30°C) ~ 122°F (50°C).
- UL8750, UL1012, UL1310 Class 2, CSA-C22.2 No. 107.1, CSA C22.2 NO. 223-M91 Class 2

LISTING:
- UL/ CUL listed.
- RoHS.
- IP67 rated.
- Tested to IESNA LM80 standards.
- Suitable for wet locations.
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- ARRA compliant.
