FEATURES:

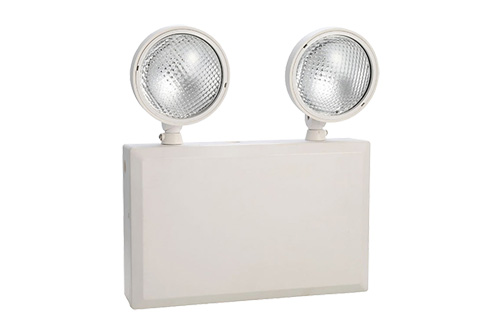

- Heavy duty emergency light with remote capability.
- Injection-molded, engineering-grade, V-0 flame retardant, high-impact, thermoplastic housing.
- Universal mounting plate with easy quick connect for fast installation.
- 90+ minute emergency operation.
- Test switch and charge rate indicator.
- Available in white housing.

MOUNTING:
- Surface wall mount.
- Side and top conduit knockouts on back plate allow for wall mounting directly to standard J-Box.

ELECTRICAL:
- 120V/277V dual voltage operation standard.
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- LVD (Low Voltage Disconnect) prevents battery from deep discharge.

LAMPS:
- Fully adjustable, glare-free PAR36 incandescent lamps.
- 6V model offers 7.2W lamps, standard.
- 12V 50W model offers 9W lamps, standard. 12V 100W model offers 12W lamps, standard.

BATTERY:
- Maintenance-free, rechargeable 6V 2Ah sealed lead acid battery on emergency (EM) units.
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- Internal solid-state transfer switch automatically connects the internal battery to LEDs for minimum 90 minute emergency illumination.

OPTION:
- HTR : Using the internal heater enables the unit to be used in cold environments. (Available 650, 1250 battery)

LISTING:
- 5 years limited warranty on materials and all electronics.
- Battery pro-rated for two years.
- UL listed for damp locations & meets UL924, National Electrical Code, ANSI/NFPA 70 and the Life Safety Code ANSI/NFPA 101.
- UL listed for dry locations. (25°C(77°F))
- ARRA compliant (optional).
