APPLICATION:

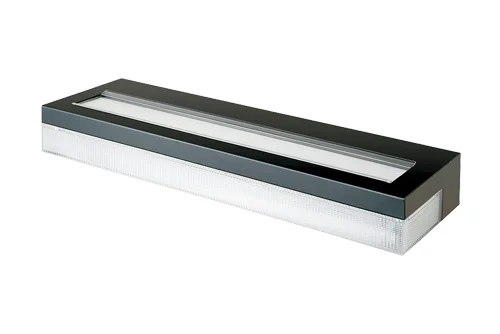

Up light and down light with divider for hospital bed light.  Acrylic diffuser with metal end caps. Ideal for use in bed light, nursing home light, task light and stairwells areas.

FEATURES:
- High-gloss baked enamel finish over rust inhibiting phosphate coat on die formed cold rolled steel housing. Post powder coated white, black and bare finish.
- Clear prismatic acrylic with ribbed front diffuser; optional clear ribbed up light acrylic diffuser.
- Up light fixture with divider and up light acrylic. Dividers are available for up light and/or down light; four-position pull-switch.
- Emergency battery backup with test switch and indicator light.
- Optional rocker switch, grounded convenience outlet and GFCI.
- Custom modifications to physical specifications and color are available for this fixture.
- Wall mounted.

LAMP:
- Standard T8 lamp type and optional T5 or T5HO lamps are available.
- Pressure-lock lamp holders or easy twist lock lamp sockets.
- Three-lamp models are standard with two lamps bottom and one top.
- Lamp not included.

ELECTRICAL:
- High power factor instant start electronic ballast for T8 lamps are sound rate A, minimum starting temperature 0°F (-18°C), <10% THD and input voltage ranges of 120 to 277 volts comes as standard.
- High power factor programmed start electronic ballast for T5 and T5HO lamps are sound rate A, minimum starting temperature 0°F (-18°C), <10% THD and input voltage ranges of 120 to 277 volts comes as standard.
- Ballast disconnect plug provided as standard.

LISTING:
- UL/CUL listed and labeled.
- Suitable for damp locations.
- Made in USA.
- ARRA compliant.
