APPLICATION:

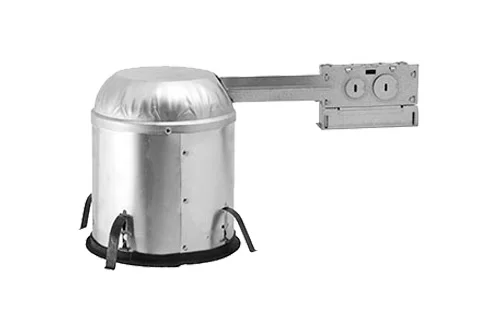

IC and airtight 5” aperture housing is for PAR30 and R30 incandescent lamps. Small aperture model of recessed downlight housing is for accent and task lighting. It is design to use in insulated ceilings and can be in direct contact with ceiling insulation. Airtight housing prevents airflow between attic and living areas.

FEATURES:
- Recessed housing rated IC-airtight for remodel applications. IC rated for direct contact with insulation.
- Airtight fixture sealed and gasket to prevent airflow between plenum spaces and heated areas.
- Single wall aluminum housing adjusts to a maximum ceiling thickness of 1-1/2”.
- Galvanized steel plate connects housing to electrical junction box.
- Housing with thermal protector guards against misuse of insulation materials and improper lamping.
- 7-1/2” height allows use in 2”x6” joist construction.

JUNCTION BOX:
- Galvanized steel junction box is listed for through branch circuit wiring and has seven 1/2” knockouts and four romex pry-out slots.
- Romex knockouts include built-in strain relief and require no additional clamps.
- Ground wire is provided on J-box.

REMODEL CLIPS:
- Four remodel clips secure housing and accommodate ceiling thickness from 1-1/2”.

LAMPS:
- Lamp maximum wattage: 75W, A19 / R30 / PAR30 (Lamp ratings based on trim selected).
- Vertically adjustable medium base porcelain socket with screw shell and center contact.

LISTING:
- UL/CUL listed for damp locations.
- UL/CUL listed for through-branch wiring minimum 90°C supply conductors.
- CSA certified.
- Meets the state of California Title 24 requirements.
- Meets state of Washington restricted air flow requirements.

TRIMS:
- Please refer to trim pages 135-136 for further details.
- Reflector - Aluminum specular finish.
- Baffle - Aluminum with deep grooves to reduce aperture glare. Matte black or white painted finishes.
- Wall Washers - Scoop wall washers are available for consistent; smooth side wall illumination.
- Lenses - Shower trim glass lenses. Albalite, drop opal or fresnel lenses. Wet location.
- White metal trim ring is standard.
