APPLICATION:

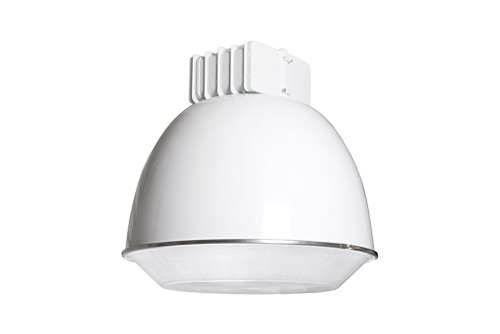

16” or 22” diameter low bay series.  Ideal for location of retail stores, storage areas and general open areas.  Suited for low to medium mount heights of 20’ or lower.

FEATURES:
- Heavy duty die-cast aluminum ballast housing and prismatic acrylic bottom lens and white polyester powder painted aluminum reflector.
- Die-cast aluminum ballast housing with a white polyester powder paint finish.
- Easy to change out with other reflectors replace or remove and bottom lens.

MOUNTING:
- Steel hanger comes as standard.
- Comes with steel hook or die cast hook for easy mounting (WHK).
- Pendant splice box threaded for 3/4” conduit or hook mount.

REFLECTOR & BOTTOM LENS:
- Injection molded acrylic bottom lens and white polyester powder painted aluminum reflector.
- Available with conical bottom lens, drop  bottom lens and heat and impact resistant tempered clear glass flat lens in options.

LAMP:
- HPS Lamps have mogul base (E39) heavy duty porcelain socket with screw shell and center contact.
- MH Lamps have protected mogul base (E39) heavy duty porcelain socket with screw shell and center contact.
- Lamp included.

ELECTRICAL:
- MH ballasts are standard high power factor ballast with ambient operating temperature of -20°F (-30°C) to 108°F (90°C), 180°C insulation system.
- HPS ballasts are standard high power factor ballast with ambient operating temperature of -40°F (-40°C), 180°C insulation system.

LISTING:
- UL/CUL listed standard.
- IP20 rated.
- Suitable for damp location.
- ARRA compliant (optional).
