* Discontinued - limited stock available



APPLICATION:

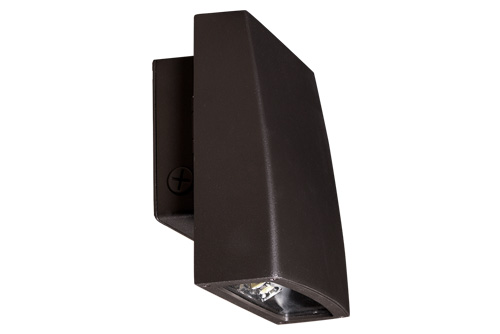

This LED wall pack is ideal for both commercial and residential applications with wall mounting and other applications including pole and knuckle mounting.  Use on factories, warehouses, self storage, commercial buildings, entrances, walkways and loading.

FEATURES:
- Die-cast aluminum housing with rubber gasket on back plate.
- Dark bronze finish is standard.
- Solid state lighting technology for long life, low maintenance, and high efficiency.

MOUNTING:
- Wall mount: direct junction box mounting.
- Knuckle mount: 1/2” NPS. (LCW-30LED)
- Trunnion mount. (LCW-30LED)
- Pole mount. (LCW-50LED and 80LED)
- Slip Fitter for use with 2.36” O.D tube. (LCW-50LED and 80LED)

LED:
- CREE LED.
- Color temperature: 5000K.
- 140° Beam Angle.
- 50,000 hours.

ELECTRICAL:
- High power factor electronic driver, operate from a 100 ~ 277V AC input range, 50/ 60Hz.
- Power factor: over 0.91.
- Operating temperatures range: -20°C(-4°F) ~ 40°C(104°F).
- Output Current Amps: 700mA (30LED) / 1250mA (50LED) / 1950mA (80LED)
- Driver efficiency: 87%

LISTING:
- UL/CUL listed. (Down light only)
- DLC listed.
- Suitable for wet location.
- 5 years limited warranty.
- IESNA LM-79 and LM-80 Testing.
