APPLICATION:

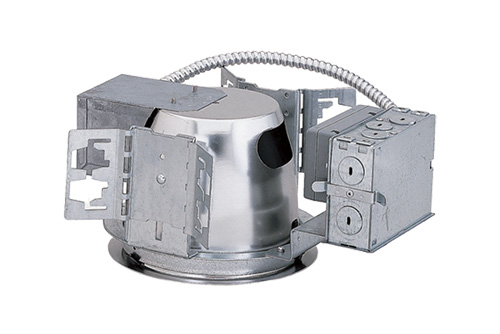

6” Horizontal architectural frame-in is design for high quality application with lens and adjustable trims. The architectural configuration is ideal for suspended ceiling or T-bar grid installations.

FEATURES:
- Quad horizontal compact fluorescent lamp housing for one or two lamps horizontally mounted; 4-pin quad socket with integral ballast.
- Galvanized steel plaster frame: Architectural quality galvanized steel ring riveted to elevated steel junction box tray.
- Architectural frame-in requires minimum clearances of 3” from thermal insulation and 1/2” from adjacent building components.
- Ceiling thickness: Accepts 3/4” Max. ceiling thickness.
- Socket: Die formed galvanized steel with one or two, 4-pin thermoplastic sockets.
- Mounting: Plaster ring has two universal mounting brackets that adjust 3-1/8” vertically from above or below the ceiling.

JUNCTION BOX:
- Junction box is listed for through branch circuit wiring and has five 1/2” and two 3/4 knockouts and four romex pry-out slots.
- Ground wire provided on J-box and quick connectors are supplied on all leads.
- Romex knockouts include built-in strain relief and require no additional clamps.

BAR HANGERS:
- Universal brackets accept C-channel or flat bar hangers (order separately) or simple rigid 1/2” steel conduit for tie-down to ceiling grids.

LAMPS:
- One or two 13-26W electronic 4-pin quad tube (DTT) ordered separately.
- One 13-42W electronic 4-pin triple tube (TRT) ordered separately. (Lamp ratings based on trim selected)

BALLAST:
- High power factor electronic ballast for T4 lamps are sound rate A, class P, programmed start, minimum ambient starting temperature 0°F (-18°C), <10% THD and operating a line voltage from 120V to 277V comes as standard.
- Emergency back-up 90 minute, 650 Lumen battery and dimming ballast options are available.

LISTING:
- UL/CUL listed for damp locations.
- Minimum 75°C supply conductors.
- CSA Certified.

TRIMS:
- Please refer to trim pages for further details.
