APPLICATION:

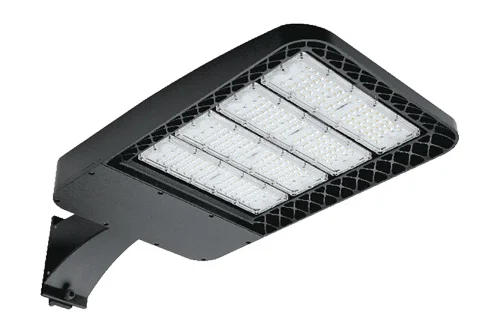

LED Shoebox/Area Light series can be used in parking lot, urban roads, industrial areas, residential areas, sidewalks, schools, and gardens. Wide detection area, range up to 52FT in diameter.

FEATURES:
- American design style, high quality aluminum die casting, painting process (DUPONT coating powder), and cracking prevention.
- Shell materials: Aluminum & PC
- A mini copper core seal is put on the heat sink, allowing it to breath and improve heat dissipation. This will automatically adjust the inside and outside pressure to ensure no vapor will appear.
- Front surface with inner-depressed design with anti-glare fuction which prevents the lens from turning yellow after long run under sunshine.
- All parts are joint together by a corrosion-prooft silicone ring to fulfill the waterproof of IP rating.
- Stainless steel screws with strong anti-acid and anti-alkali to prevent corrosion.

MOUNTING:
- Slip Fitter.
- Wall Mount.
- Square Pole Mount Arm.
- Round Pole Mount Arm.

LED:
- SEOUL 3030 chips.
- Color Temperature: 5000K
- Color Rendering Index: >80
- Luminous Efficiency: 130lm/w
- Beam angle: Type3 distribution
- Life span: ≥ 50,000 hours

ELECTRICAL:
- Input Voltage: 120-277Vac., 50/60Hz
- Power Factor: >0.95
- 1-10V dimming is standard.
- Operating temperature: -40ºC (-40ºF) ~ 60ºC (140ºF)
- Provided with integrated surge protection of 12kV for 100-200W, and 10kV for 300W.
- P67 rated.
- UL 8750 listed.

LISTING:
- DLC premium listed.
- ETL listed.
- IP65 rated.
- LM-79, LM-80.
- FCC.
- 5 years limited warranty.
