* Discontinued - limited stock available



APPLICATION:

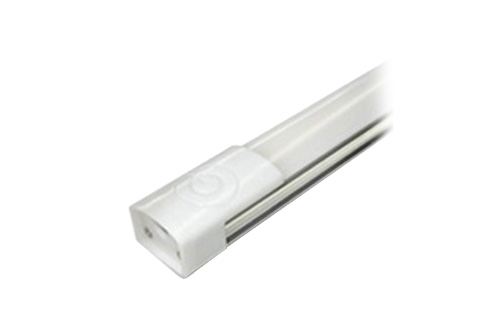

Linkable LED strip light fixture with touch switch button. The under cabinet light is a low-profile ultra-slim fixture that can easily installed under cabinets, above displays, inside shelves and overhead area. Perfect for many applications for both accent and task lighting, offices accent, laboratories, closets.

FEATURES:
- LED Bar with touch switch.
- Aluminum body, Frosted cover.
- End to end continuous or wire cable connecting.
- Comes with cord, plug, mounting accessories.
- Accessories: clips, screw, 3M sticker, 6 inch (15cm) length cable connector per unit.
- DC power plug cable kit not included, order separate.

SHIELDING:
- Frosted acrylic cover lens.

MOUNTING:
- Horizontal or vertical surface mount.
- Install with either adhesive 3M metal sheet on the magnet or screw the clip on the wall or surface, and snap it in the clips.
- Link more than 2 fixtures together with either the included direct connector or connecting cable.
- Continuous connection refer to below table.

LAMP:
- High efficient LED CW (Cool White) color temperature standard.
- WW (Warm White), NW (Nature White) LEDs are optional.
- Luminous Efficacy: 80+ lm/w.
- 110 degree angle.
- 50,000 hours.

ELECTRICAL:
- High power factor electronic driver, input voltage ranges of 100-240V, 50/60 Hz.
- Output voltage 24Vdc.
- 18W Plug in Adapter: Input 100-240V/50-60Hz, 0.5A, output 24VDC/ 750MA, UL listed, output DC cable 200CM
- 36W Desk-top Adapter: Input 100-240V/50-60Hz, 1.0A, output 24VDC/ 1500MA, UL listed, input cable & output cable 1M each

LISTING:
- UL/CUL listed and labeled.
- For Dry / Indoor location.
- 3 years limited warranty.
