APPLICATION:

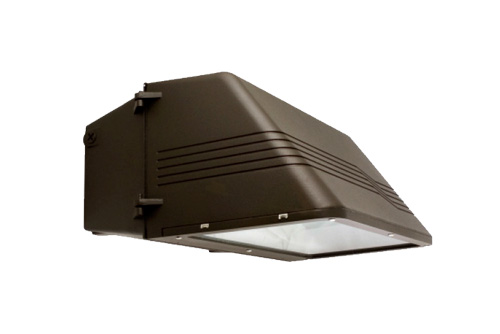

The full cut-off wall pack is ideal for both commercial applications with wall mounting.  Use on factories, warehouses, self storage, commercial buildings, entrances, walkways and loading docks.

FEATURES:
- Full cut-off dark sky compliant fixtures.
- Die-cast aluminum housing and hinged door frame.
- Door frame holds lens and seals to housing gasket.
- Anodized aluminum reflector with wide beam spread.
- Housing has silicone gasket to seal to lens for wet location.
- Dark bronze finish is standard; white or black finish is also available.

MOUNTING:
- Wall mounting only.
- Easily installed on recessed junction boxes or direct mounts to the wall with feed thru 1/2” conduit access.

REFLECTOR & COVER:
- Anodized aluminum reflector with high efficiency and wide beam spread.
- Heat and impact resistant tempered frost textured glass lens.

LAMP:
- Induction lamps will have rectangular lamp and long lamp life rated 100,000 hours, nominal 82Lm/W, 80+ CRI.
- Lamp included.

ELECTRICAL:
- High power factor, instant start, high frequency energy, from the electronic ballast (generator); High-frequency power to the discharge vessel (lamp) to initiate and maintain a gas discharge for a rated 100,000 hours of life.
- Low start-up temperature, closed fixture for ambient temperatures range is from -25°C to 50°C; Higher ambient temperatures may reduce lamp life.
- Input voltage: 120-277V
- Input frequency: 50/60Hz

LISTING:
- UL/CUL listed.
- Suitable for wet location.
- Limited 10 years warranty on induction system (including material & workmanship).
- ARRA compliant (optional).
