APPLICATION:
Building facades, walkways, drive ways, tennis courts, parking lots, commercial and industrial complexes. For other general applications where flood lighting may come into use. As well as general safety and security lighting.

FEATURES:

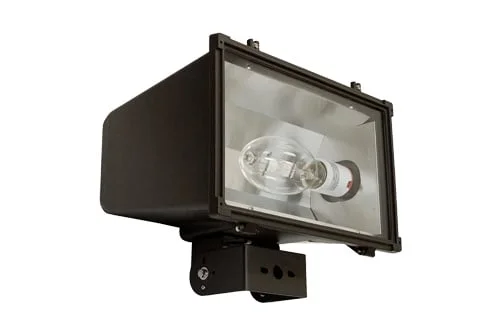

- Heavy duty die-cast aluminum housing and door frame. Housing is dark bronze polyester powder paint finish standard. Also available in white, black and custom color finish.
- Silicone rubber gasket included to prevent dirt or moisture from outside.
- Anodized aluminum reflector with high efficiency, heat and impact resistant tempered clear glass lens.

MOUNTING:
- Provided with a standard heavy-duty TR (yoke) mount for both ground and wall mount. Optional SF (slip fitter) mount. Wall mount bracket available.

LAMP:
- MFL2: up to HPS 400W, MH 400W.                                                MFL2L: HPS 1000W, MH 1000W.
- Uses a mogul base (E39) porcelain socket with screw shell and center contact.  Lamp included.

ELECTRICAL:
- MH ballasts are standard high power factor ballast with ambient operating temperature of -20°F (-30°C) to 108°F (90°C); 180°C insulation system.
- HPS ballasts are standard high power factor ballast with ambient operating temperature of -40°F (-40°C); 180°C insulation system.

LISTING:
- UL/CUL listed.
- Suitable for wet location.
- ARRA compliant (optional).
