APPLICATION:

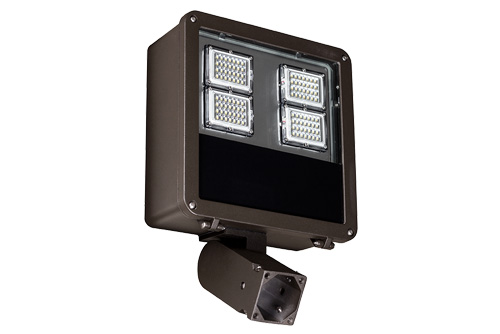

Heavy duty die-cast aluminum housing, arm mount and vertical lamp unit. Modular design LED and aluminum reflector allows for ease of maintenance.  Use on walkways, parking areas and street lighting.

FEATURES:
- Heavy duty rugged one-piece die-cast aluminum housing and door frame. Housing is dark bronze polyester powder paint finish standard. Also available in white, black and custom color finish.
- Silicone gasket provides weatherproof seal between housing and frame.
- Heat and impact resistant tempered clear glass lens.

MOUNTING:
- Provided with a standard heavy-duty adjustable slip fitter mount (SF) or yoke mount (TR) for both ground and wall mount.
- Available 6” long aluminum arm for square pole mounting (PM).

LED:
- High efficient LED modules, components are products of Samsung LEDs.
- High safety with complete waterproof and thermal emission of LED Module. IP67 rated.
- 5000K color temperature standard.
- Color Rendering Index: 82+ Ra.
- Input Voltage: 24Vdc
- 60°/120° Beam Angle.
- 50,000 hours.

ELECTRICAL:
- High power factor electronic driver, operate from a 90 ~ 305 Vac input range, 50 / 60 Hz.
- Features include over voltage protection, surge, short circuit protection and over load protection.
- Waterproof (IP67) and damp location.
- All-Round Protection: OVP, SCP, OTP.
- Class 2 and SELV
- Power Factor: typical > 0.92
- Optional 1-10V dimmable driver. (Dimmer supplied by others)
- Minimum starting temperature: -22°F (-30°C) ~ 122°F (50°C).
- UL8750, UL1012, UL1310 Class 2, CSA-C22.2 No. 107.1, CSA C22.2 NO. 223-M91 Class 2

LISTING:
- UL/ CUL listed.
- RoHS.
- IP67 rated.
- Tested to IESNA LM80 standards.
- Suitable for wet locations.
- 5 years limited warranty.
- ARRA compliant.
