* Discontinued - limited stock available



APPLICATION:

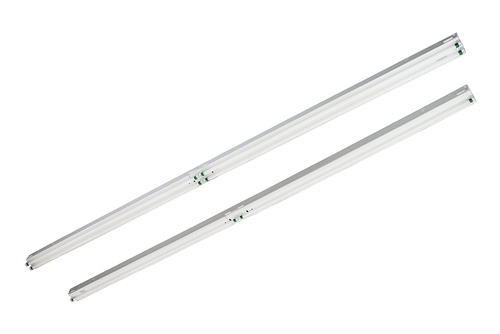

The T5 slim strip lights series are more compact with higher efficiency strip light than the T8 strip light. The performance and application versatility can be increased by incorporating symmetrical or asymmetrical reflectors. It is functionality makes it a standard fixture used in storage areas, displays, institutions, industrial and retail applications.

FEATURES:
- Die-formed steel channel with knock-outs for versatile configuration and simple mounting.
- Available with 1 or 2 lamps, and in single unit lengths or as tandem.
- Optional wire guards with snap-on clips available.
- Optional symmetrical specular aluminum reflector or white steel reflectors.
- Finish is high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.

MOUNTING:
- For surface, chain, swivel stem, unit or row installation.
- End plates can be modified for continuous row mounting option.
- Compatible with most ceiling types.

LAMP:
- Standard T5 and T5HO lamps are available.
- Easy twist lock lamp sockets.
- Lamp not included.

ELECTRICAL:
- High power factor programmed start electronic ballast for T5 and T5HO lamps are sound rate A, minimum starting temperature 0°F (-18°C), <10% THD and input voltage ranges of 120 to 277 volts comes as standard.
- Ballast disconnect plug provided as standard.

LISTING:
- UL/CUL listed and labeled.
- Suitable for damp locations.
- ARRA compliant (optional).
