APPLICATION:

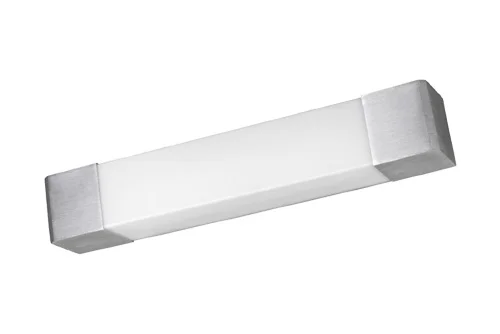

Wall or ceiling corridor light.  Acrylic diffuser with metal end caps.  Ideal for use in public areas, corridors, locker rooms, laundry, bathrooms and work areas.

FEATURES:
- Aluminum end caps and an aluminum body.
- Extruded matte white acrylic diffuser.
- Natural aluminum finish as standard (AL)

MOUNTING:
- Surface wall mounting.
- Horizontal or vertical mount.
- Provided a universal mounting back for a standard 3” plaster ring or J-box.

LED:
- Color Temperature: 2700/3000/3500/4000/5000 (K).
- LED Module: High efficiency up to 140 LPW.
- Service life: Greater than 60,000 hours(L70) minimizing maintenance frequency.
- Poke in wire connectors.
- Color variation within 3-step MacAdam ellipse.

ELECTRICAL:
- High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
- Dimming Control: 0-10V 10%~100%.
- Power Factor: +0.9
- Efficiency: +85%
- Ambient Operating Temperature: -30°C (-22°F)~50°C (122°F).
- Constant Current, Class 2

ADA COMPLIANT:
- ADA requires all fixtures below 68” to have a maximum projection of 4”.

LISTING:
- UL listed and labeled.
- Suitable for damp locations.
- ADA compliant.
- ARRA compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
