* Discontinued (UDL5L) - limited stock available



APPLICATION:

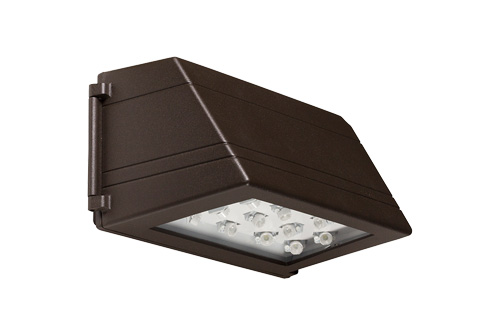

The trapezoid wall sconce down light is ideal for walkways, building exterior walls, parking areas, entrances, underpasses, loading docks and recreation areas. Wall mounting height requires between 8 feet and 15 feet below.

FEATURES:
- Full cut-off dark sky compliant fixtures.
- Heavy duty die-cast aluminum housing on which electrical components are mounted for maximum heat dissipation.
- Silicone rubber gasket included to prevent dirt or moisture from outside.
- Architectural dark bronze finish standard. Also available in white or black finish.
- One piece high reflectance aluminum reflector designed for desired light efficiency.
- Provide down light only.

MOUNTING:
- Wall mounting only.
- Easily installed on recessed junction boxes or direct mounts to the wall with feed thru conduit access.

REFLECTOR & COVER:
- High efficiency anodized aluminum reflector with wide beam spread.
- Heat and impact resistant tempered clear glass lens.

ELECTRICAL:
UDL5
- LED input 23W drives 13 LEDs.
- CREE XTE LED.
- Min. 1200 lumen output.

UDL5L
- LED input 48W drives 33 LEDs.
- CREE XTE LED.
- Min. 3200 lumen output.

- LEDs have nominal 5000K color.
- Input Voltage: 120V-277V, 50/60Hz.

LISTING:
- UL/CUL listed.
- Suitable for wet location.
- 5 years limited warranty.
