PHOTOMETRIC DATA

APPLICATION:

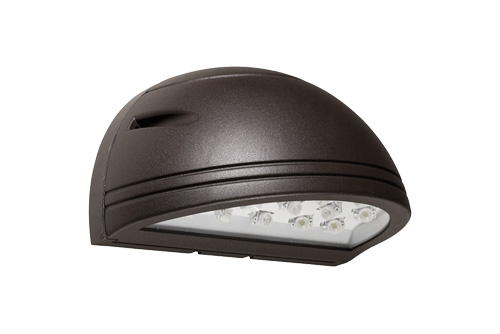

The quarter sphere wall sconce down light is ideal for walkways, building exterior walls, parking areas, entrances, underpasses, loading docks and recreation areas.  Wall mounting height requires between 8 feet and 15 feet below.

FEATURES:
- Full cut-off dark sky compliant fixtures.
- Heavy duty die-cast aluminum housing on which electrical components are mounted for maximum heat dissipation.
- Silicone rubber included to prevent leakage from the outside.
- 5-stage polyester powder coat paint (Only applied to UDL7L with WT or FT). Architectural dark bronze finish standard. Also available in white or black finish.
- One piece high reflectance aluminum reflector designed for full cut-off light, desired light efficiency.
- Provide downward light only.

MOUNTING:
- Wall mounting only.
- Easily installed on recessed junction boxes or direct mounts to the wall with - feed thru conduit access.

REFLECTOR & COVER:
- High efficiency anodized aluminum reflector with wide beam spread.
- Heat and impact resistant tempered clear glass lens.

ELECTRICAL:
<UDL7>
- LED input 20W drives 13 LEDs.
- CREE XTE LED.
- Min. 1650 lumen output.
<UDL7L>
- LED input 50W drives 33 LEDs.
- CREE XTE LED.
- Min. 4060 lumen output.

- LEDs have nominal 5000K standard color.
- 50,000 hours.
- Input Voltage: 120V-277V, 50/60Hz.

LISTING:
- UL/CUL listed.
- DLC certified. (13LED Only)
- Suitable for wet location.
- 5 years limited warranty.
