APPLICATION:

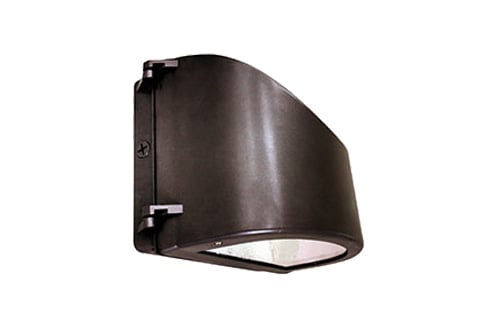

The full cut-off large wall pack is ideal for both commercial and residential applications with wall mounting. Use on factories, warehouses, self storage, commercial buildings, entrances, walkways and loading docks.

FEATURES:
- Heavy duty die-cast aluminum housing and hinged door frame with high impact and heat resistant borosilicate tempered glass refractor.
- Housing with 1/2” feed-through hubs provided.
- Housing has silicone rubber included to prevent and leakage from outside.
- On piece anodized specular aluminum reflector for best light efficiency.
- Dark bronze finish is standard; white or black finish is also available.

MOUNTING:
- Wall mounting only.
- Easily installs on recessed junction boxes or direct mounts to the wall with feed thru 1/2” conduit access.

REFLECTOR & COVER:
- Anodized specular aluminum reflector with high efficiency and wide beam spread.
- Heat and impact resistant tempered borosilicate glass lens.

LAMP:
- HID lamps have medium base (E26 BD/ED17) porcelain socket with screw shell and center contact.
- Lamp is included.

ELECTRICAL:
- MH ballasts are standard high power factor ballast with ambient operating temperature of -20°F (-30°C) to 108°F (90°C); 180°C insulation system.
- HPS ballasts are standard high power factor ballast with ambient operating temperature of -40°F (-40°C); 180°C insulation system.

LISTING:
- UL/CUL listed.
- Suitable for wet location.
- ARRA compliant.
