* Discontinued - limited stock available



APPLICATION:

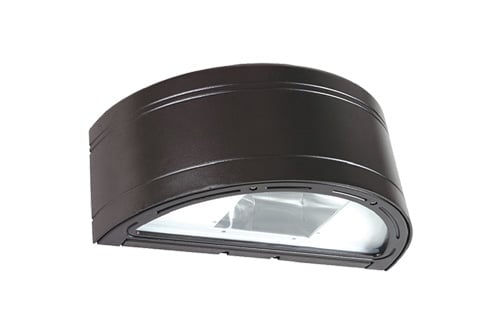

The half moon wall sconce full cut-off down light. Ideal for walkways, building exterior walls, parking areas, entrances, underpasses and loading docks. Suitable for building surface and wall mounted applications.

FEATURES:
- Full cut-off dark sky compliant fixtures when down light options.
- Heavy duty die-cast aluminum housing on which electrical components are mounted for maximum heat dissipation.
- Silicone rubber included to prevent and leakage from the outside.
- 5-step UV resistant powder coated dark bronze finish standard.
- Also available in white or black finish.
- One piece high reflectance aluminum reflector.
- One piece high reflectance aluminum reflector designed for full cut-off light.
- Provide up and down light or down light only.

MOUNTING:
- Wall mounting only.
- Easily installed on recessed junction boxes or direct mounts to the wall with feed thru conduit access.

REFLECTOR & COVER:
- High efficiency anodized aluminum reflector with wide beam spread.
- Heat and impact resistant tempered clear glass lens.

LAMP:
- HID lamps have medium base (E26) porcelain socket with screw shell and center contact. UL certified socket.
- Compact fluorescent lamps have 4-pin socket (GX24).
- Lamp included.

ELECTRICAL:
- MH ballasts are standard high power factor ballast with ambient operating temperature of -20°F (-30°C) to 108°F (90°C); 180°C insulation system.
- HPS ballasts are standard high power factor ballast with ambient operating temperature of -40°F (-40°C); 180°C insulation system.
- Compact fluorescent uses a high power factor electronic ballast, multi-voltage (120-277V), sound rate A, thermoplastic sockets.

LISTING:
- UL/CUL listed.
- Suitable for wet location.
- ARRA compliant.
