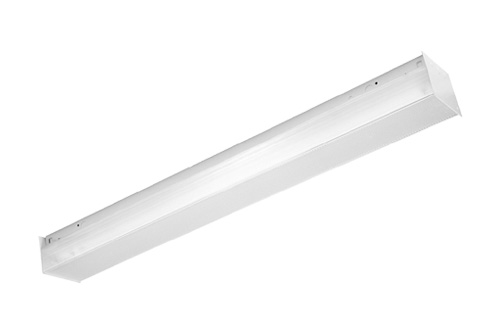

New narrow surface ceiling or wall mount wrap fixtures. Energy efficient fluorescent lighting fixture has linear sides prismatic acrylic diffuser provide sufficient up light and delivers diffuse and moderate down light in areas. Use for corridors and stairwells, utility closets and small office areas.
- 100% acrylic, high-impact, injection molded prismatic basket diffuser with flat bottom and vertical sides.
- Diffuser choice prismatic acrylic.
- Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
- Lens are capable of being hinged from either side for easy cleaning and service.
- Screw latch system secures lens to base housing. (Wall mount)
- Finish is high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
- Surface or stem mounting for individual installation.
- For ceiling or wall mounting.
- End to end row mounting option available.
- Compatible with most ceiling types.
- Color Temperature: 2700/3000/3500/4000/5000 (K).
- LED Module: High efficency up to 162 LPW.
- Nominal Lamp Life: 100,000 hours.
- Reported L70 hours: +60,000 (55°C)
- Poke in wire connectors.
- High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
- Philips Xitanium: 0-10V Dim to 1%(PH).
- Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
- Generic : 0-10V 10% dim. (GR)
- Power Factor: +0.9
- Efficiency: +85%
- Ambient Operating Temperature:-4°F (-20°C) ~ 122°F (50°C).
- Constant Current, Class 2
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.
- UL listed.
- Listed to UL 1598 and UL 8750.
- Suitable for dry and damp location.
- CEC Compliant EM (please contact for more information).
- Optional ARRA compliant.
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
