10-12 weeks lead time

TITLE 24.jpg

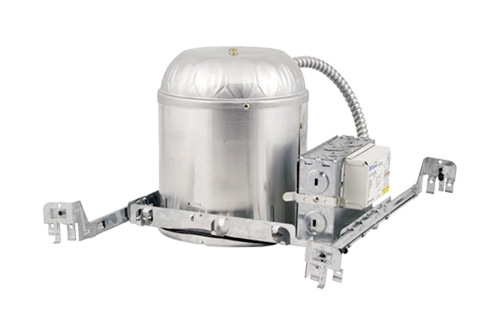

IC and airtight 5” aperture recessed down light housing is design for general purpose application with lens and variety of trims. Universal compact fluorescent housing gives an economical energy and cost saving with easy installation.

- Compact fluorescent IC-airtight rated single wall housing with gasket attached to the frame.
- Housings are IC-rated for use in insulated ceilings and will be in direct contact with ceiling insulation.
- Airtight housing prevents airflow between attic and living areas.
- Housing can be removed from plaster frame for junction box access. Housing can be adjusted in plaster frame for ceilings up to 1-1/2” thick. 7-1/2” height allows use in 2”x8” joist construction.
- Housing suitable for new construction.

- Galvanized steel junction box was listed for through branch circuit wiring and has seven 1/2” knockouts and four romex pry-out slots.
- Quick connectors are supplied on all leads.
- Romex knockouts include built-in strain relief and require no additional clamps.
- Ground wire is connected to the bottom on J-box.

- Pre-installed adjustable bar hangers are Integral T-bar clip snaps onto T-bars; no additional clips or brackets.
- Housing can be positioned at any point within between joists with 16“ to 24” space.
- Double head nails included, positioned for quick and easy installation.

- One 13-26W G24q 4-pin quad (DTT) and one 13-42W CFL GX24q 4-pin triple tube(TRT) for electronic ballast operation; ordered separately.
- Socket: Vertically adjustable socket mount galvanized steel plate with universal lamp holder; 4-pin UL listed thermoplastic socket.

- High power factor, programmed start, electronic ballast, no PCB’s, class P and operating a line voltage from 120V to 277V w/ Q-connectors; 120V comes as standard.
- Emergency back-up 90 minutes battery pack and dimming ballast options are available. Must specify voltage.

- UL/CUL listed for damp locations.
- UL/CUL listed for through-branch wiring minimum 90°C supply conductors.
- CSA certified.
- Meets the state of California Title 24 requirements.

- Please refer to trim pages 94 for further details.
- Offers a wide choice of trim types including reflector, wall wash and lensed trims.
