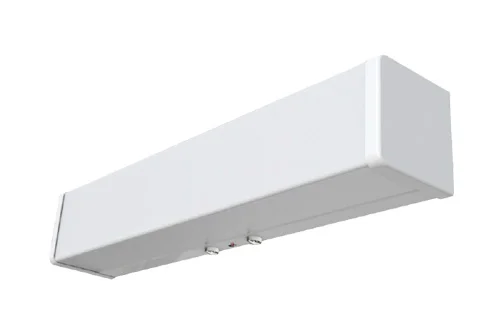

Wall mounted luminaire, and optional with integral ultrasonic motion sensor provides luminaire applications, bi-level stair well lighting. Ideal for use in wall, corridors, stairwells, closets, laundry, bathrooms, dormitories, hallways and general work areas.
- High-gloss white on die formed 20 gauge cold rolled steel housing and one-piece metal ends. Come as white finish (Std.)
- Clear prismatic acrylic diffuser; optional smooth white acrylic diffuser.
- Step dimming ballast and ultrasonic sensor system for bi-level lighting control.
- Integral ultrasonic occupancy sensor to detect motion within a space and automatically turn lights on.
- Surface wall mounted.
- Optional One piece slide-on ends.
- Standard T8, T5, T5HO lamps are available.
- Pressure-lock lamp holders or easy twist lock lamp sockets.
- Lamp not included.
- High power factor instant start electronic ballast for T8 lamps are sound rate A, minimum starting temperature 0°F (-18°C), <10% THD and input voltage ranges of 120 to 277 volts comes as standard.
- High power factor programmed start electronic ballast for T5 and T5HO lamps are sound rate A, minimum starting temperature 0°F (-18°C), <10% THD and input voltage ranges of 120 to 277 volts comes as standard.
- Ballast disconnect plug provided as standard.
- UL/CUL listed and labeled.
- Suitable for damp locations.
- Made in USA.
- ARRA compliant.
