APPLICATION:

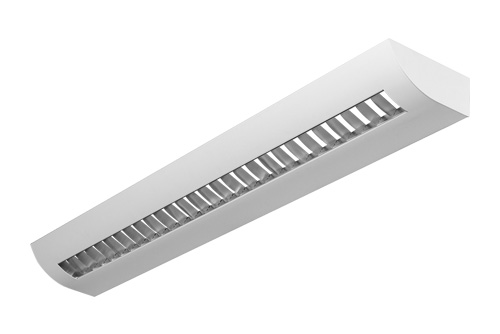

Architectural indoor, direct/indirect wall mount light for LED. It creates soft and diffused lighting that ensures maximum visual comfort and balanced shadows. It can be installed individually or in a continuous line. Use for general office, bank, retail and educational environments.

FEATURES:
- Die formed 20 gauge cold-rolled steel housing. Flat steel end plate standard. Powder coated for a long life finish. White finish is standard. Die cast aluminum spade end cap optional.
- 2’, 3’ and 4’ individual fixture sections for nominal spacing of 2’, 3’ and 4’. Using 2’, 3’ and 4’ sections can be joined to form longer length fixtures.
- Parabolic semi-specular aluminum louvers (standard) and white painted steel baffle (WBL).
- Die-formed high-reflective white reflector is standard. Optional anodized specular aluminum reflector.
- Uplight and down light distribution.
- Textured matte white polyester powder paint.

MOUNTING:
- Individual installation or end-to-end row wall mount.

LED:
- Color Temperature: 2700/3000/3500/4000/5000 (K).
- LED Module: High efficiency up to 162 LPW.
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours
- Poke in wire connectors.
- Color variation within 3-step MacAdam ellipse.
- WIO Series LED is rated to deliver LM80 performance.
- CRI 80+

ELECTRICAL:
- High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
- Dimming Control: 10%~100%(std.), 1~100%, Bi-level step dim.
- Power Factor: +0.9
- Efficiency: +85%
- Ambient Operating Temperature: -22°F (-30°C) ~ 122°F (50°C).
- Constant Current, Class 2.

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

LISTING:
- UL / CUL listed.
- UL listed for dry & damp location.
- Listed to UL 1598 and UL 8750.
- CEC Compliant EM (please contact for more information).
- ARRA compliant.
- BAA compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limites warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
